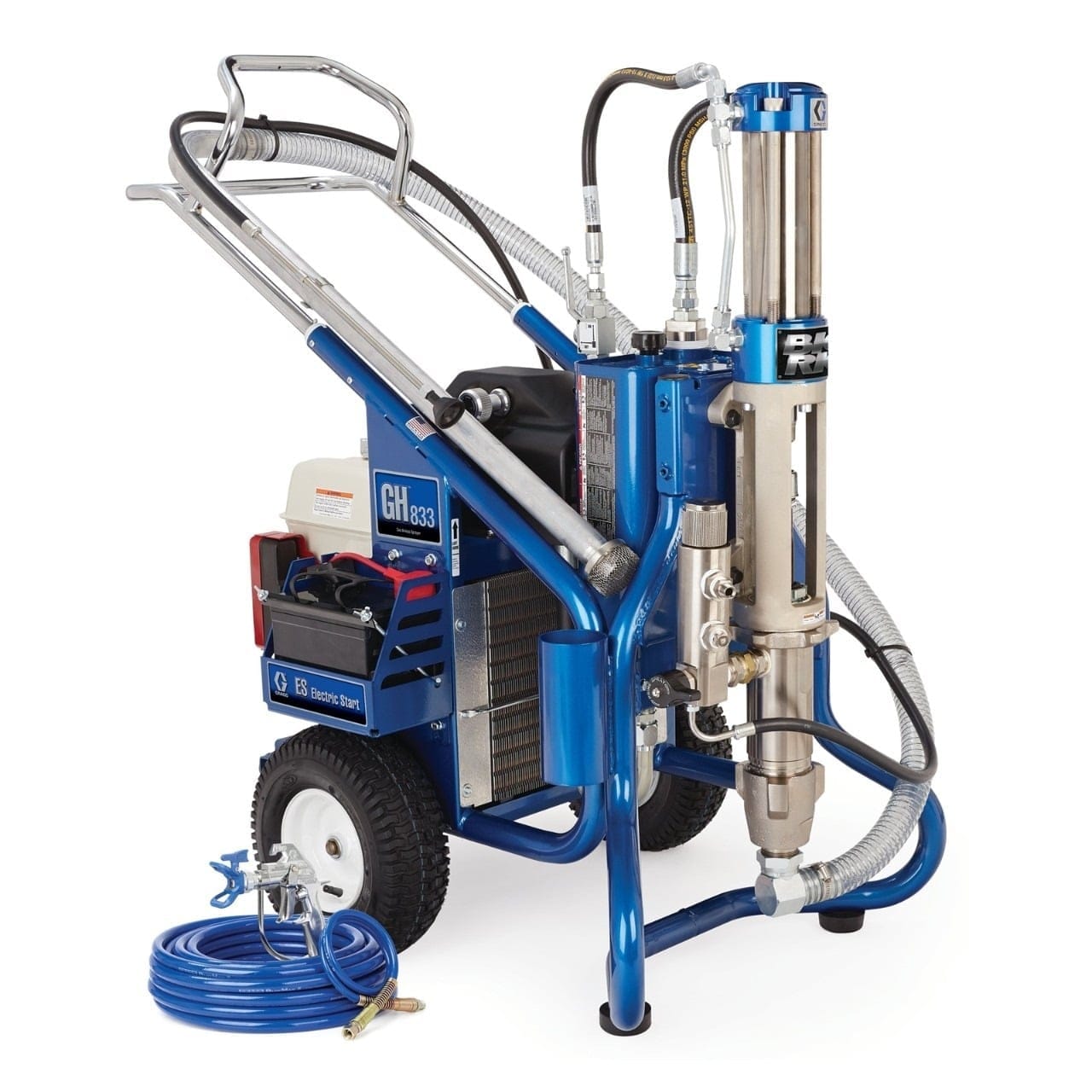

GH 833ES Big Rig Gas Hydraulic Sprayer Series
Price range: $21,260.00 through $24,920.00
GH 833ES Big Rig Gas Hydraulic Sprayer Series
The GH 833ES Big Rig Gas Hydraulic Sprayer series is designed for high-production contractors who require powerful performance, ruggedness, and reliability. Equipped with a Honda® 390 cc (13 HP) engine with electric start and back-up pull start, this sprayer series also features a high-capacity 12 Volt 18 Amp charging system, ensuring maximum performance for various material applications, including:
- Acrylics, Block Filler, Coal Tar, Contact Cement, Enamels, Elastomerics, Epoxies
- Fibered and Non-Fibered Aluminum Emulsion, Fibered and Non-Fibered Asphalt Emulsion
- Paints, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing solutions
Each model in the GH 833ES series includes:
- Heavy-duty cooling system with a 4-gallon hydraulic reservoir and return-line filter for extended life.
- Heavy-duty Graco hydraulic system with high-precision pressure control and durable hydraulic lines.
- Rugged steel frame with easy-roll pneumatic tires and corrosion-resistant enamel coating.
- MaxLife Endurance Pump for durability, including QuikChange and QuikAccess features to reduce downtime.
- Flow-Through Filter System to minimize clogs and tip blockages, providing uninterrupted spray flow.
- Cart frame configuration and adjustable pressure control, with a maximum working pressure of 4000 psi.
Technical Specifications
| Specification | GH 833ES Bare | GH 833ES Complete | GH 833ES Big 250 System |
|---|---|---|---|
| Engine Brand | Honda | Honda | Honda |
| Engine Size (HP) | 13 | 13 | 13 |
| Power Source | Gas Hydraulic | Gas Hydraulic | Gas Hydraulic |
| Power Rating (HP) | 13 | 13 | 13.0 |
| Power Rating (W) | 9694 | 9694 | 9694 |
| Power Rating (kW) | 9.7 | 9.7 | 9.69 |
| Maximum Flow Rate (GPM) | 4.0 | 4.0 | 4.0 |
| Maximum Working Pressure (psi) | 4000 | 4000 | 4000 |
| Maximum Working Pressure (MPa) | 27.6 | 27.6 | 27.6 |
| Maximum Hose Length (ft) | 50 | 50 | 250 |
| Maximum Tip Size (in) | 0.065 | 0.065 | 0.053 |
| Maximum Tip Size for 1 Gun (in) | 0.065 | 0.065 | 0.053 |
| Maximum Tip Size for 2 Guns (in) | 0.046 | 0.046 | N/A |
| Maximum Tip Size for 3 Guns (in) | 0.037 | 0.037 | N/A |
| Maximum Tip Size for 4 Guns (in) | 0.032 | 0.032 | N/A |
| Maximum Tip Size for 5 Guns (in) | 0.029 | 0.029 | N/A |
| Maximum Tip Size for 6 Guns (in) | 0.026 | 0.026 | N/A |
| Frame Configuration | Cart | Cart | Cart |
| Fluid Inlet Size (in) | 1-1/2 to 11-1/2 | 1-1/2 to 11-1/2 | N/A |
| Fluid Inlet Thread Type | MNPT | MNPT | N/A |
| Fluid Outlet Size (in) | 1 to 11-1/2 | 1 to 11-1/2 | N/A |
| Fluid Outlet Thread Type | FNPT | FNPT | N/A |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen | 60 Mesh Stainless Steel Screen | Easy Out |
| Compatible Replacement Pump | 287834 | 287834 | 287834 |
| Material Application | Paints, Primers | Paints, Primers | Paints, Primers |
| Number of Guns | 6 | 6 | 1 |
| Pump Type | Endurance | Endurance | Endurance |
| Pump Mount Type | QuikChange | QuikChange | QuikChange |
| Pump Rod Type | MaxLife | MaxLife | MaxLife |
| Series | 833ES | 833ES | 833ES |
| Product Type | Single Leg | Single Leg | Single Leg |
| Type | Airless Sprayer | Airless Sprayer | Airless Sprayer |
| Weight (lb) | 398 | 398 | 398 |
