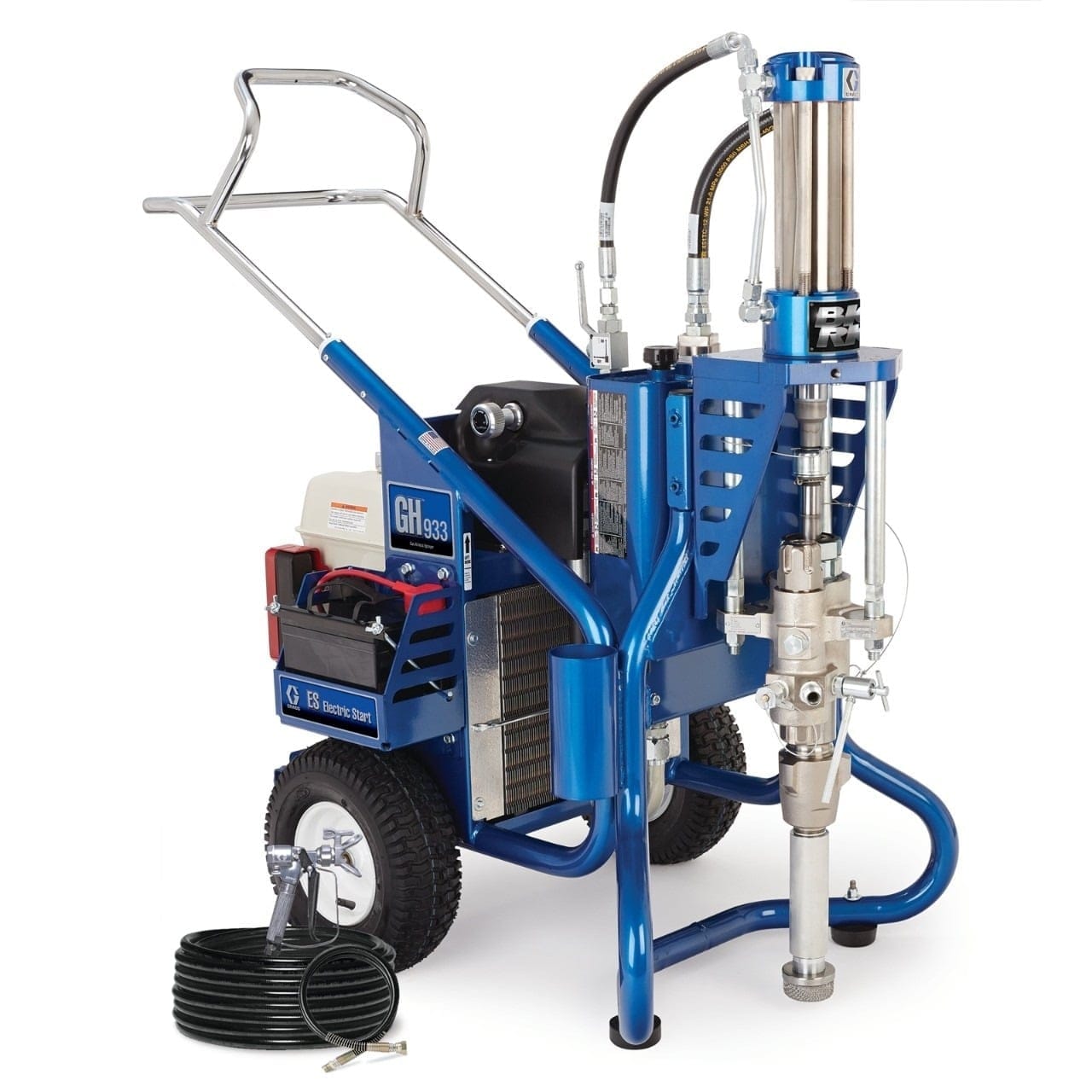

GH 933ES Big Rig Gas Hydraulic Sprayer Series

$17,509.00 – $26,699.00

Options

Bare
Big 250 System
Complete

Sprayer Recommendations

Roof Coatings

0 People watching this product now!

Description

For over 30 years, contractors have relied on the GH line of gas hydraulic sprayers for maximum performance and versatility. The GH 933ES model is built for demanding applications, from high-pressure needs for long hose runs and hard-to-atomize materials to high flow rates for heavy coverage. Ideal for high-production applications like architectural coatings, waterproofing, fireproofing, and protective coatings, the GH 933ES series does not require a separate air compressor, offering a convenient and powerful solution for any job site.

Technical Specifications

Specification	GH 933ES Bare	GH 933ES Complete	GH 933ES Big 250 System
Engine Brand	Honda	Honda	Honda
Engine Size (HP)	13	13	13
Engine Size (kW)	9.7	9.69	9.69
Maximum Flow Rate (GPM)	2.5	2.5	2.5
Maximum Working Pressure (psi)	3300	7250	7250
Maximum Working Pressure (MPa)	22.8	50	50
Maximum Sound Pressure Level (dB(A))	91	91	91
Maximum Tip Size (in)	0.053	0.065	0.053
Maximum Tip Size 1 Gun (in)	0.065	0.053	0.053
Frame Configuration	Cart	Cart	Cart
Fluid Inlet Size (in)	1-1/4	1-1/4	1-1/4
Fluid Inlet Thread Type	MNPT	MNPT	MNPT
Fluid Outlet Size (in)	3/4	3/4	3/4
Fluid Outlet Thread Type	NPSF	NPSF	NPSF
Compatible Material	Primers, Stains, Acrylics, Enamel, Latex, Interior Paint, Exterior Paint	Acrylics, Block Filler, Coal Tar, Contact Cement, Enamel, Elastomerics, Epoxies, etc.	Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, etc.
Compatible Replacement Pump	16U755	16U755	16U755
Construction	Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten	Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten	Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten
Pump Type	Xtreme	Xtreme	Xtreme
Pump Mount Type	QuikChange	QuikChange	QuikChange
Pump Rod Type	Chromex	Chromex	Chromex
Product Type	Single Leg	Single Leg	Single Leg
Type	Airless Sprayer	Airless Sprayer	Airless Sprayer
Power Rating (HP)	13	13.0	13.0
Power Rating (W)	9694	9694	9694
Power Source	Gas Hydraulic	Gas Hydraulic	Gas Hydraulic
Pressure Control Type	Lockable Pressure Control Knob	Lockable Pressure Control Knob	Lockable Pressure Control Knob
Overall Height (in)	49	49	49
Overall Length (in)	43	43	43
Overall Width (in)	28	28	28
Weight (lb)	438	438	438

Additional information

Weight	N/A
Dimensions	N/A
Brands	Graco
Frame	Cart
Maximum Flow Rate (GPM)	2.50
Maximum Tip Size (in)	0.053 , 0.065
Maximum Working Pressure (psi)	3300 , 7250
Power Source	Gas Hydraulic
Options	Bare , Big 250 System , Complete
Sprayer Recommendations	Roof Coatings
