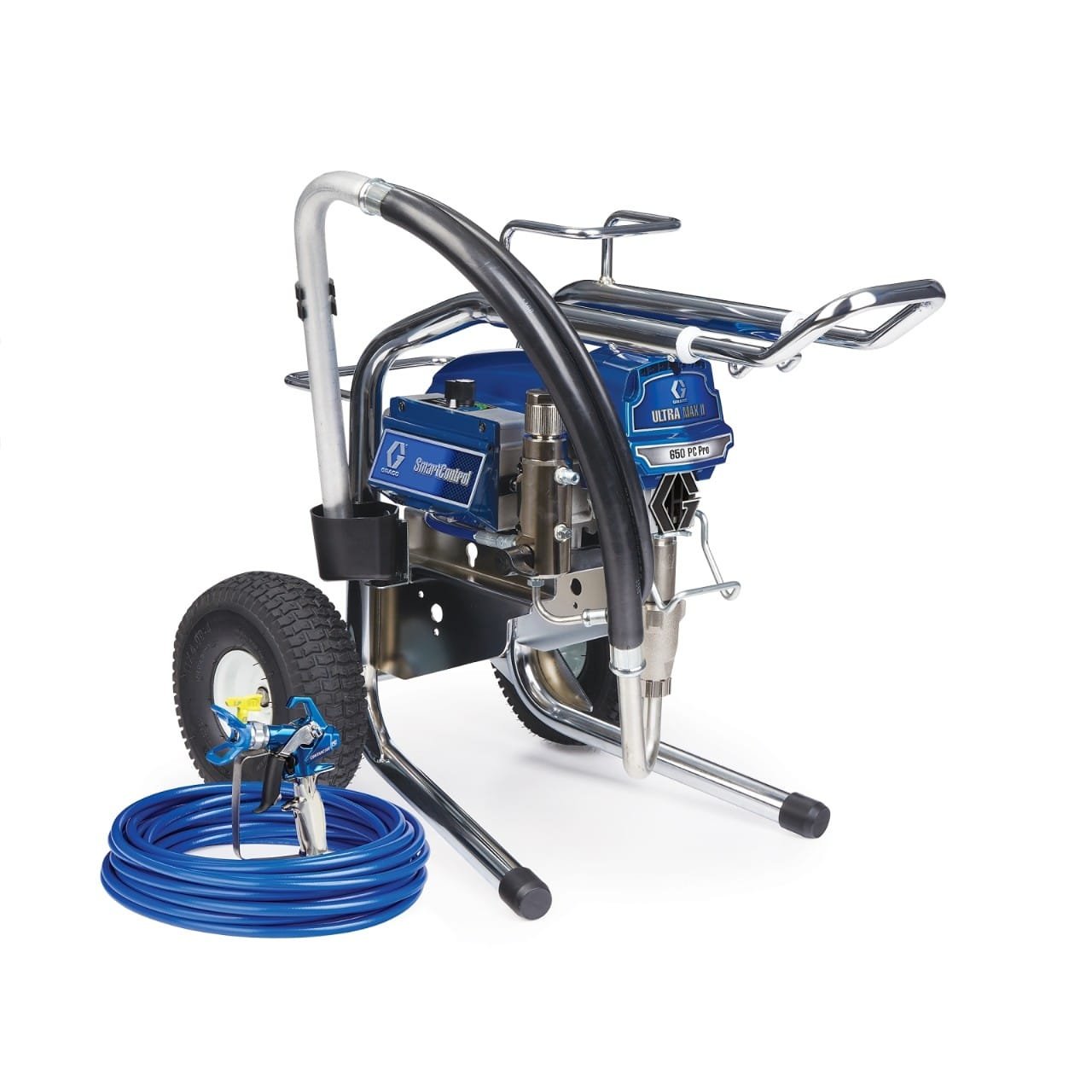

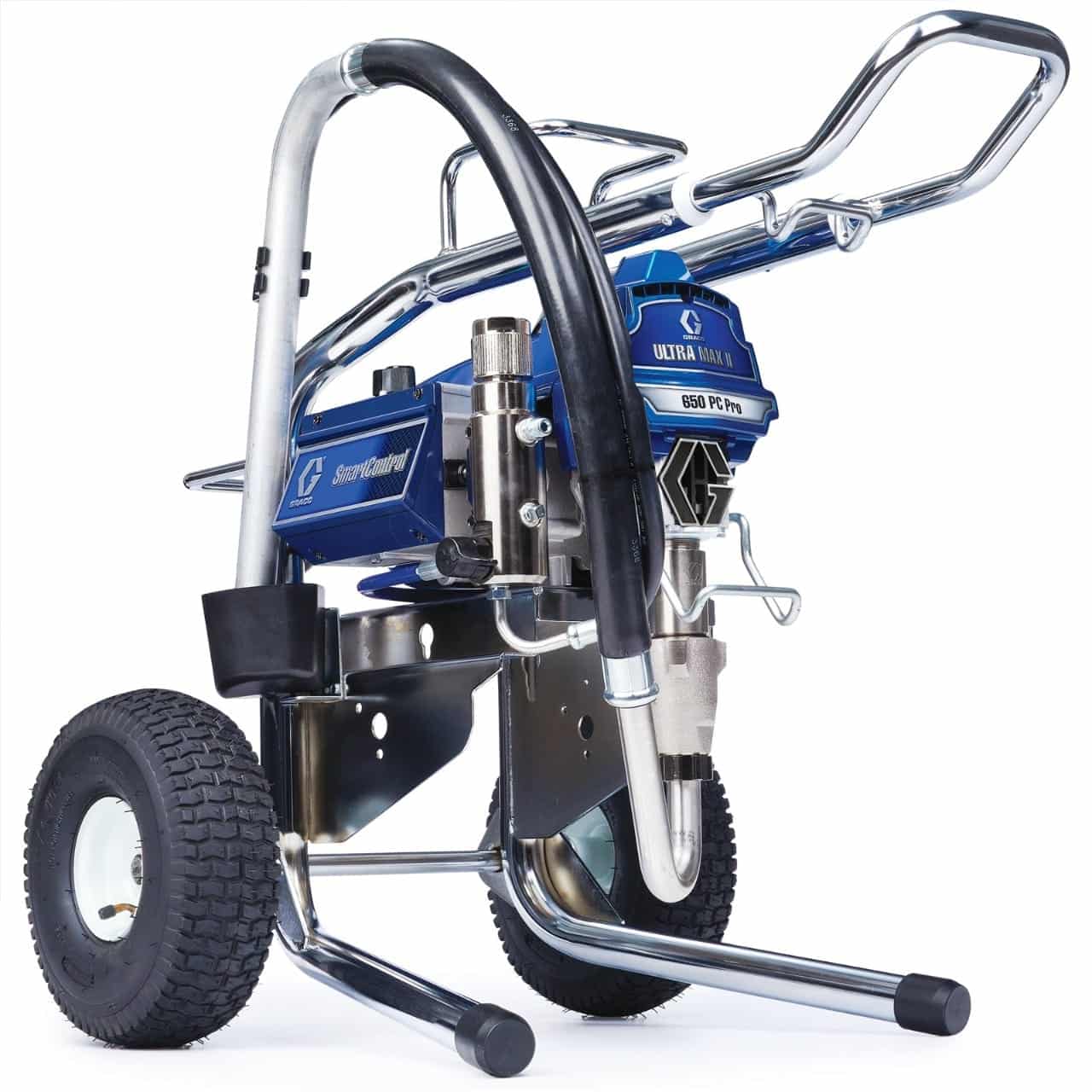

Ultra Max II 650 PC Pro Electric Airless Sprayer Lo-Boy

Name: Ultra Max II 650 PC Pro Electric Airless Sprayer Lo-Boy
SKU: 19Y129
Availability: InStock

$3,039.00

The Ultra Max II 650 PC Pro Electric Airless Sprayer by Graco is the lightest 2-gun sprayer in its class, combining top-tier performance and portability. Engineered to handle heavy coatings easily, it delivers fast, efficient operation and reduced ownership costs.

Add to compare

Add to wishlist

0 People watching this product now!

SKU: 19Y129 Category: Graco Electric Paint Sprayers Tags: 2-Gun Airless Sprayer, airless sprayer for heavy coatings, Contractor PC Gun, durable airless sprayer, Endurance Chromex Pump, Graco Electric Airless Sprayer, MaxPower Motor, Portable Airless Sprayer, ProConnect pump, SmartControl 3.0, Ultra Max II 650 PC Pro

Description

The new Graco Ultra Max II 650 PC Pro Electric Airless Sprayer is the lightest 2-gun electric airless sprayer available, combining high-quality performance, portability, and durability. This sprayer is built for large-scale tasks yet offers mid-size portability, enabling faster job completion. With enhanced capability to handle heavier coatings, it delivers a lower cost of ownership without compromising efficiency.

Key Features:

Endurance Piston Pump: Lasts 2X longer than competing pumps, with a larger intake for handling heavier coatings.
ProConnect: Enables pump swaps in minutes without the need for tools.
2-Hose Connection Manifold: Supports 2-gun capability, compatible with tips up to 0.019”.
Easy Out Filter: Designed for easy maintenance and reduced clogging.
Small Compact Frame: Balanced design for easy transport and maneuvering; built with chrome over steel for jobsite durability.
MaxPower Motor & Advantage Drive: Maintenance-free brushless design with a Lifetime Warranty, offering the longest-lasting drive.
SmartControl with Digital Display: Ensures even pressure on every job; monitors performance and adjusts motor speed based on tip size and spraying needs.
FastFlush™: Delivers 2X faster cleaning using half the water.
Contractor PC Spray Gun: Lightweight with up to 50% lighter trigger pull force for all-day comfort and control.
Lowest Cost of Ownership: Endurance pump, Chromex piston rod, and V-Max Blue Packings minimize downtime, with fast on-the-job repair via ProConnect.

Technical Specifications

Amperage (A)	15
Construction	Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel
Engine Size (HP)	6.7
Features	Endurance Chromex Pump, SmartControl 3.0, MaxPower Brushless, Advantage Drive, ProConnect, FastFlush, Easy Out Filter, Contractor PC Gun
Filter Mesh Size	60
Fluid Outlet Size (in)	1/4
Fluid Outlet Thread Type	NPSM
Frame Configuration	Lo-Boy
Frequency (Hz)	50/60
Hose Inlet Diameter (in)	1/4
Includes	Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
Maximum Flow Rate (GPM)	0.8
Maximum Sound Pressure Level (dB(A))	90
Maximum Tip Size (1 Gun)	0.029 in
Maximum Tip Size (2 Guns)	0.019 in
Maximum Working Pressure (psi)	3300
Minimum Generator Power (W)	4000
Model	Ultra Max II
Motor Type	MaxPower
Number of Guns	2
Power Rating (HP)	1.8
Power Source	Electric
Pressure Control Type	SmartControl 3.0
Pump Mount Type	ProConnect
Pump Type	Endurance
Series	650 PC Pro
Sound Power Level (dB(A))	100
Type	Airless Sprayer
Voltage (V)	120
Volume Per Cycle (cycles/gal)	570
Weight (lb)	77

Dimensions

Overall Height	27.5 in
Overall Length	37 in
Overall Width	22.5 in

Additional information

Weight	77 lbs
Dimensions	37 × 22.5 × 27.5 in
Brands	Graco
